Oil Flow Meters consists of
Principle - Oil Flow Meters

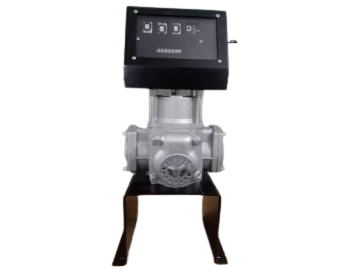

The flow meter showed as above, is composed of aluminum alloy body. connecting lever, distributing valve, and shaft. It has high accuracy and long life. The main parts are made from stainless steel and advanced industrial plastic. They are anticorrosive, highly wearable and sealed. Driving shaft is a "push and pull" drive constituted by a connecting lever and a crank. It has no intermission, no concussion and no abnormal voice. When the driving shaft runs, it drives the shaft of sensor. So the pulse is produced and it is input into the computer. The hand wheel for accuracy can be adjusted according to the errors. When it is turned to right, the delivery capacity will be reduced; when left, the delivery capacity will be increased. It is easy, accurate and stable. The meter can be adjusted one hole each time. It can also be adjusted half a hole. One hole is about 0.05%. After adjustment, insert the pin and seal the lead. When the high-pressure fuel comes into the meter.it drives four pistons to complete an operating cycle. When the crank turns a round, the volume of the fuel ejected by an operating cycle is 0.5L.
